ADS-4500W

Verwendungsart	Desktop
Bedienfeld	4 Tasten
Anzeige	Farb-Touchscreen
Anzeigegrösse	7,1 cm

Verwendungsart

Desktop

Bedienfeld

4 Tasten

Farb-Touchscreen

Anzeigegrösse

7,1 cm

USB-Schnittstelle	High-Speed USB 3.0, USB 2.0 Host (Rückseite)
Wi-Fi Direct	IEEE 802.11 g/n
LAN-Schnittstelle	10Base-T/100Base-TX
WLAN-Schnittstelle	2.4GHz: IEEE 802.11b/g/n

USB-Schnittstelle

High-Speed USB 3.0, USB 2.0 Host (Rückseite)

Wi-Fi Direct

IEEE 802.11 g/n

LAN-Schnittstelle

10Base-T/100Base-TX

WLAN-Schnittstelle

2.4GHz: IEEE 802.11b/g/n

Abmessungen mit Verpackung	391 ｘ 243 ｘ 320 mm (B x H x T)
Gewicht mit Verpackung	3,41 kg
Abmessungen ohne Verpackung	299 ｘ 216ｘ 190 mm (B x H x T)
Gewicht ohne Verpackung	2,68 kg

Abmessungen mit Verpackung

391 ｘ 243 ｘ 320 mm (B x H x T)

Gewicht mit Verpackung

3,41 kg

Abmessungen ohne Verpackung

299 ｘ 216ｘ 190 mm (B x H x T)

Gewicht ohne Verpackung

2,68 kg

Energieverbrauch - Bereitschaft	7,3 W
Energieverbrauch - Schlafmodus	1,7 W
Betrieb	25 Watt
Aus	0.1 Watt
Schallleistung	59 dB

Energieverbrauch - Bereitschaft

7,3 W

Energieverbrauch - Schlafmodus

1,7 W

Betrieb

25 Watt

Aus

0.1 Watt

Schallleistung

59 dB

Luftfeuchtigkeit	20 - 80%
Temperatur	5 - 35°C

Luftfeuchtigkeit

20 - 80%

Temperatur

5 - 35°C

Sonstiges	ADS-4500W, Netzkabel, USB 3.0 Kabel, Benutzerhandbuch, Installationsanleitung, Produktsicherheitshinweise, 3 Jahre Vor-Ort Herstellergarantie.

Medienformate	Normalpapier, dünnes Papier, dickes Papier, Recyclingpapier, Visitenkarten, Plastikkarten
Mediengrammatur	40 - 200 g/m², Plastikkarten: bis 1,10 mm, geprägt bis zu 1,32 mm
Medienformate für automatischen Vorlageneinzug (ADF)	Breite: 51 - 215,9 mm, Länge: 51 – 355,6 mm, 5,000 mm (einzeln) Langes Papier, Plastikkarten: 85,6 x 54 mm

Medienformate

Normalpapier, dünnes Papier, dickes Papier, Recyclingpapier, Visitenkarten, Plastikkarten

Mediengrammatur

40 - 200 g/m², Plastikkarten: bis 1,10 mm, geprägt bis zu 1,32 mm

Medienformate für automatischen Vorlageneinzug (ADF)

Breite: 51 - 215,9 mm, Länge: 51 – 355,6 mm, 5,000 mm (einzeln) Langes Papier, Plastikkarten: 85,6 x 54 mm

IPv4	DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client, LDAP
IPv6	RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6
LAN Netzwerk	10Base-T/100Base-TX
Sicherheit für LAN-Netzwerke	SMTP-AUTH, SSL/TLS (HTTPS, SMTP), SNMP v3, 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS)
Wireless-Netzwerk	2.4GHz: IEEE 802.11b/g/n, Vertical Pairing, IEEE 802.11g (Wi-Fi Direct)
Wireless-Netzwerksicherheit	SMTP-AUTH, TLS, SSL(HTTPS, SMTP), WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES), WPA3
Unterstützung für Wireless-Einrichtung	Ja

IPv4

DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client, LDAP

IPv6

RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6

LAN Netzwerk

10Base-T/100Base-TX

Sicherheit für LAN-Netzwerke

SMTP-AUTH, SSL/TLS (HTTPS, SMTP), SNMP v3, 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS)

Wireless-Netzwerk

2.4GHz: IEEE 802.11b/g/n, Vertical Pairing, IEEE 802.11g (Wi-Fi Direct)

Wireless-Netzwerksicherheit

SMTP-AUTH, TLS, SSL(HTTPS, SMTP), WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES), WPA3

Unterstützung für Wireless-Einrichtung

Gelieferte Software - Mac	Newsoft - Presto! Bizcard 7, Image Folio, Brother iPrint&Scan for Desktop, Remote Setup
Gelieferte Software - Windows	Brother ScanEssentials Lite, Newsoft - Presto! Bizcard 6, Image Folio, Brother iPrint&Scan for Desktop, Kofax PaperPort, Kofax Power PDF Standard v3, Remote Setup

Gelieferte Software - Mac

Newsoft - Presto! Bizcard 7, Image Folio, Brother iPrint&Scan for Desktop, Remote Setup

Gelieferte Software - Windows

Brother ScanEssentials Lite, Newsoft - Presto! Bizcard 6, Image Folio, Brother iPrint&Scan for Desktop, Kofax PaperPort, Kofax Power PDF Standard v3, Remote Setup

Beidseitiger Scan	Ja
Scangeschwindigkeit (DIN A4)	35 Seiten pro Minute
Scangeschwindigkeit duplex S/W	70 Bilder pro Minute
Scangeschwindigkeit duplex Farbe	70 Bilder pro Minute
ADF	60
Scannen an	PC, Image, Network (SMB), Email Server, Workflow, FTP/SFTP
Treiber	Windows: TWAIN, WIA, Windows 10 (Home\|Pro\|Education\|Enterprise)(32 or 64 bit editions), Windows 8.1(32 or 64 bit editions), Windows 7 SP1 (32 or 64 bit editions), Windows Server 2019, 2016, 2012R2, 2012macOS: TWAIN, macOS 10.14.x/10.15.x/11.0.x/11.1.xLinux: SANE, AirPritnScan
Graustufen	256
ICA-Kompatibilität	Nein
Interpolierte Scan-Auflösung	1200 x 1200 dpi
ISIS-Kompatibilität	Nein
Mehrfachzufuhr-Erkennung	Ja
Papiersensor	Ja
SANE-Kompatibilität	Ja
Scan-Funktionen	20 konfigurierbare Favoriten,USB HID class, Auto Start Scan Funktion, Fortlaufender Scan, Dokumententrennung, Langes Papier (5,000mm), Leere Seiten überspringen, Automatische Entzerrung, Automatische Formaterkennung, Scannen auf Knopfdruck, Hintergrund entfernen, Farbe herausfiltern, Automatische Bilddrehung, Seitenende erkennen
Scanauflösung für automatischen Vorlageneinzug (ADF)	600 x 600
WIA-Kompatibilität	Ja

Beidseitiger Scan

Scangeschwindigkeit (DIN A4)

35 Seiten pro Minute

Scangeschwindigkeit duplex S/W

70 Bilder pro Minute

Scangeschwindigkeit duplex Farbe

70 Bilder pro Minute

ADF

Scannen an

PC, Image, Network (SMB), Email Server, Workflow, FTP/SFTP

Treiber

Windows: TWAIN, WIA, Windows 10 (Home|Pro|Education|Enterprise)(32 or 64 bit editions), Windows 8.1(32 or 64 bit editions), Windows 7 SP1 (32 or 64 bit editions), Windows Server 2019, 2016, 2012R2, 2012macOS: TWAIN, macOS 10.14.x/10.15.x/11.0.x/11.1.xLinux: SANE, AirPritnScan

Graustufen

256

ICA-Kompatibilität

Nein

Interpolierte Scan-Auflösung

1200 x 1200 dpi

ISIS-Kompatibilität

Nein

Mehrfachzufuhr-Erkennung

Papiersensor

SANE-Kompatibilität

Scan-Funktionen

20 konfigurierbare Favoriten,USB HID class, Auto Start Scan Funktion, Fortlaufender Scan, Dokumententrennung, Langes Papier (5,000mm), Leere Seiten überspringen, Automatische Entzerrung, Automatische Formaterkennung, Scannen auf Knopfdruck, Hintergrund entfernen, Farbe herausfiltern, Automatische Bilddrehung, Seitenende erkennen

Scanauflösung für automatischen Vorlageneinzug (ADF)

600 x 600

WIA-Kompatibilität

Support

Frau sitzt an einem Schreibtisch, vor einem Laptop

Optionales Zubehör	Trägerbogen (nicht im Lieferumfang enthalten)

Garantie	3 Jahre Vor-Ort Garantie

Treiber und Downloads

Laden Sie sich aktuelle Treiber und Software für Ihre Brother Produkte herunter.

Downloads anzeigen

Mann und Frau saßen am Schreibtisch auf einem Laptop

FAQ & Fehlerbehebung

Hier finden Sie alle Antworten auf häufig gestellte Fragen und Problemlösungen.

FAQ anzeigen

Mann sitzt auf einem Sofa und arbeitet an einem Tablet

Handbücher & Bedienungsanleitungen

Laden Sie Handbücher und Installationsanleitungen herunter.

Handbücher anzeigen

Produktbewertungen

ADS-4500W wurde bewertet mit 4.9 von 5 von 10.

Rated 5 von 5 von Firefox1 aus All Good Things Come in Small Packages Wow, wow, wow! The old saying, 'all good things come in small packages' is perfect to describe the Brother ADS-4500w. After a little stumble at the beginning where the material to be scanned would not go into the feeder properly, I realised it was user error as I hadn't removed the piece of tape inside the scanner, oops! Connecting the scanner and downloading the software and drivers was a doddle. I am reasonably tech savvy but am convinced that even if I wasn't, it would have been a relatively simple process. I tried it with the USB cable and also in the Wi-Fi setting. The settings are simple and to the point. I only tried feeding in a sheet at a time and it fed through extremely quickly and with ease. I even tried a piece of printed embossed card and again, no problemo. The scan quality is highly impressive and as you can see from the photo picks up on the colours and textures beautifully. This is a serious piece of kit in a compact little package and is definitely going to be my favourite toy to play with. Gone are the days when you spend hours scanning a sheet in at a time and now I genuinely can't wait to scan in all the paperwork that is waiting for me. It is also going to be fantastic for me to scan in all the work projects not to mention the old photos which hold so much sentimental value. Thank you Brother and a very warm welcome to my family.

Veröffentlichungsdatum: 2023-05-17

Rated 5 von 5 von Anonym aus Amazing scanner This scanner is the best on the market. Compact, easy to use, set up simple & does everything you need a scanner to do! Buy it you won’t regret it I guarantee. 10/10 for me !!

Veröffentlichungsdatum: 2023-05-02

Rated 4 von 5 von adzyp aus Great Piece of Kit....For My Needs Let me start by saying this is a great bit of kit! For years I have been using my small all in one printer to do my scanning, taking forever to setup and scan a single sheet....but this is lightning fast! You feed your document in (like you would feed blank paper on a printer) and within a second I have a great quality copy straight on my phone! Now for me, this is all I need it for so its great, however I did have issues trying to scan to email. I work in IT so like to think I know what im doing but couldn’t find a way to get it to scan to email without it throwing a 'server timeout' error. I also don't think the instructions that came in the box offer any help with this type of scanning setup too. It hasnt really affected how I would use this though, but I will look into it further!

Veröffentlichungsdatum: 2023-04-11

Rated 5 von 5 von AgnesRWB aus Incredibly fast and very compact scanner Woooow! I'm so satisfied with this scanner. It is very compact in size which is a great advantage in small offices. The whole setting process is easy, quick and hassle free. I didn't expect that a scanner is able to scan so fast in such a good quality. I don't have to take photo of each customer's bill separately. Now I just put a pile of receipts in the scanner and it scans it quickly and effortlessly. I was able to declutter the drawer with my daughters' school stuff and scan it all smoothly to my desktop. I definitely recommend Brother ADS-4500W to everyone.

Veröffentlichungsdatum: 2023-04-11

Rated 5 von 5 von mistymoo70 aus I wish I had owned this scanner sooner! I was pleasantly surprised to find that the Brother ASD 4500W scanner was compact. This meant that I would have no problem finding a home for it in my office. The set up really could not have been any simpler. I downloaded the app to my mobile phone, scanned the barcode in the set-up guide and followed the instructions. Less than 10 minutes later I was scanning my first document. The only part of the set up that I found tricky was typing my Wi-Fi password on the small screen of the scanner. In future I will use a stylus instead of my chubby fingers! I scanned documents in different sizes and in paper thicknesses. All scanned super quickly, and the resultant scanner quality was excellent. It was super easy to scan multiple pages and the scanner will accept up to 60 pages at a time in the feeder, (in less than 2 minutes). It is possible to add more pages to the saved file for documents of over 60 pages. Unlike previous scanners I’ve used, all pages came out straight and there were no paper jams. There are options to save documents as jpeg images or as pdfs to a variety of different locations such as mobile phone, USB, ethernet or W-Fi. It can also scan directly onto a shared drive or even to e-mail. One of the reasons I wanted a scanner like this was to digitise photographs. I was sceptical about how well the scanner would perform in terms of image quality and efficiency, but I need not have worried as both surpassed my expectations. Although I did not time the speed of scanning photographs, it was even quicker than scanning A4 documents. On my next use decided to scan documents onto a USB and then also to my PC. After downloading the drivers, the process was incredibly simple. Super simple to set up, so far I’ve set up a shortcut for scanning photos onto USB , single sided in colour with a resolution of 600dpi and a shortcut for scanning documents in black and white with a resolution of 200dpi and omitting any blank pages. I discovered that if scanning photos directly onto a mobile phone it is only possible to select a maximum resolution of 300dpi. It is just so convenient to be able to scan without the need for a PC and the image quality at 300psi still looked great, so I’m likely to continue to scan from the app on my phone and reserve scanning to my PC for special photos where I want higher resolution. I would wholeheartedly recommend this scanner to anyone. It just makes life so much easier.

Veröffentlichungsdatum: 2023-04-06

Rated 5 von 5 von Anonym aus Excellent product. This product was excellent and I can not fault it in anyway. The scanner was a pleasure to use and it completed my scanning a lot quicker than another brand I have tried. I Recommend this product to anyone. Low price. Huge, 100-sheet ADF. Fast scanning and saving to image PDF. Feature-rich, simple-to-use scanning software. Easy to deploy without extensive training. Excellent support for large batch scanning. The Brother PDS-5000 offers fast, reasonably accurate document scanning at a very reasonable price, making it a good candidate for integrating into existing document management environments and for scanning in large batches. The design is compact and space saving , with simple instructions for installation.

Veröffentlichungsdatum: 2023-04-06

Rated 5 von 5 von asu78 aus Scan quality is super The Brother ADS-4500W A quick way to get started in the home or office. Thanks to the high scan speed of 35 pages per minute. The function that the scanner automatically correctly aligns all digital copies is particularly useful. Pages that have come a bit sideways are therefore no problem. The OCR ability is super brilliant. This makes all scans searchable. setting up the device was also easy. The scanner is pleasantly super fast. it is simple to set up, OCR function and automatic image correction..Highly recommend this scanner

Veröffentlichungsdatum: 2023-04-03

Rated 5 von 5 von Freddie367 aus Fantastic scanner for every office The Brother ADS-4500W is a powerhouse of a scanner, which will meet and exceed the needs of any small office or home office. You can scan to a USB disk, or to a computer or mobile device over USB, Ethernet or Wi-Fi. The Brother Mobile Connect app is really easy to use, and the scan speed and quality are phenomenal. The scanner can scan directly to a shared drive on the network, over either SAMBA, FTP or SFTP, or scan to email. You can also integrate with LDAP directories and other services for more advanced/corporate settings. I've set up shortcuts on the home screen to give one-touch access to presets - "Photo" scans in colour at high quality to a photos folder on my computer, while "Document" scans in B&W to another folder, which directly uploads to a cloud service for archiving. I'm really happy with this scanner, it'd be an ideal device for any office or home environment with high-speed scanning requirements.

Veröffentlichungsdatum: 2023-03-27

Produktdetails

Hauptmerkmale ADS-4500W:

Produktbeschreibung

Verbrauchsmaterial & Zubehör

Spezifikationen

Allgemein

Konnektivität

Abmessungen und Gewicht

Energieverbrauch

Umgebungsbedingungen

Lieferumfang

Medienformate

Netzwerk

Betriebssysteme und Software

Scanner

Verbrauchsmaterial und Zubehör

Garantie

Support

Treiber und Downloads

FAQ & Fehlerbehebung

Handbücher & Bedienungsanleitungen

Downloads

Erfahren Sie mehr über das Produkt

Anerkannte Branchen- & Industriesoftware

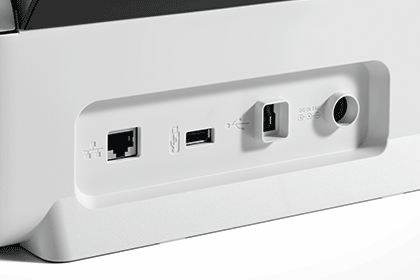

Erweiterte Konnektivität

Professionelle Bildaufnahme und Bearbeitung

Schnell und zuverlässig

Brother ScanEssentials Lite

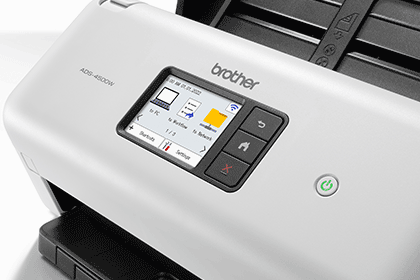

Einfach und intuitiv
